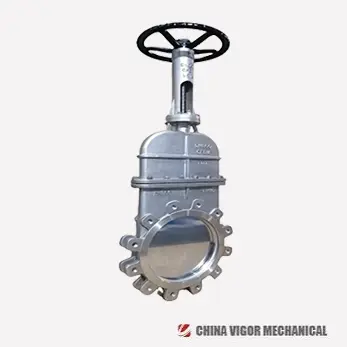

A standard size knife gate valve is a critical industrial component designed for isolating and controlling the flow of dense, abrasive, or viscous materials. These valves are typically characterized by their streamlined design, which features a sharp-edged gate that slices through thick media such as slurry, pulp, or wastewater. Standard sizes for knife gate valves are determined by industry norms and application requirements, commonly ranging from 2 inches (50mm) to 48 inches (1200mm) in diameter. The exact size depends on the specific industrial application, such as mining, wastewater treatment, or paper production. Selecting the appropriate standard size ensures optimal performance, reliability, and efficiency in managing flow processes.

Understanding the Basics of Knife Gate Valves

What Is a Knife Gate Valve and How Does It Work?

A knife gate valve is a specialized valve designed to handle tough industrial conditions that involve dense or abrasive media. Its defining feature is the sharp-edged blade, or "knife," that cuts through thick materials like slurry, sludge, or powder. This functionality makes it ideal for applications where traditional valves may falter due to clogging or wear.

The valve operates by sliding the knife vertically to either block or allow flow. In the open position, media flows freely through the valve, while in the closed position, the sharp-edged gate prevents leakage by creating a tight seal. Knife gate valves are widely used in industries such as mining, power generation, wastewater treatment, and pulp and paper production.

Key features of knife gate valves include:

- High durability: Built to withstand abrasive and corrosive materials.

- Low-pressure operation: Typically designed for systems with low-pressure flow.

- Compact design: Ideal for installations with space constraints.

Importance of Standard Sizing in Knife Gate Valves

The "standard size" of a knife gate valve refers to its nominal diameter, which is critical for ensuring compatibility with existing pipeline systems. Common sizes, such as 2 inches, 4 inches, or 6 inches, are widely available and cater to most industrial applications. However, selecting the correct size isn't just about matching the pipe diameter - it also involves considering factors like flow rate, pressure, and the type of material being handled.

Standard sizes help streamline manufacturing, reduce costs, and simplify maintenance by ensuring that replacement parts are readily available. Custom sizes can be manufactured for specialized applications, but these often come at a higher cost and longer lead times.

Materials and Design Considerations

Knife gate valves come in a variety of materials, including stainless steel, ductile iron, and cast iron. The choice of material depends on the application's specific requirements, such as resistance to corrosion, high temperatures, or abrasive wear. In addition, the design of the valve - whether it's uni-directional or bi-directional - affects its functionality and suitability for different industries.

For example:

- Stainless steel knife gate valves are ideal for corrosive environments like chemical processing or wastewater treatment.

- Cast iron knife gate valves are more cost-effective and suitable for less demanding applications, such as bulk material handling.

Applications and Industries That Rely on Knife Gate Valves

Key Industries Using Knife Gate Valves

Knife gate valves are indispensable in industries where managing thick, viscous, or abrasive media is a challenge. Some of the primary industries include:

- Mining and Mineral Processing

In mining, knife gate valves are used to handle slurry, tailings, and other abrasive materials. Their robust construction ensures a long service life, even in highly abrasive environments.

- Pulp and Paper Industry

The pulp and paper industry often deals with thick paper stock and fiber-laden water. Knife gate valves are essential for controlling the flow of these materials without clogging or causing operational delays.

- Wastewater Treatment

In wastewater systems, knife gate valves are used to isolate and control the flow of sludge, grit, and other solid-laden fluids. Their ability to create a tight seal minimizes leakage and prevents contamination.

Why Knife Gate Valves Are Preferred in These Applications

The unique design of knife gate valves makes them particularly suited for handling challenging materials that would damage or clog other types of valves. Their advantages include:

- Resistance to clogging: The sharp-edged gate cuts through materials that would obstruct traditional valves.

- Ease of maintenance: Simple design and construction allow for easy replacement of parts.

- Cost-effectiveness: Knife gate valves are often more affordable than other valve types for similar applications.

Challenges in Choosing the Right Valve for an Application

While knife gate valves are versatile, selecting the right one requires careful consideration of factors such as:

- Operating pressure and temperature: Ensure the valve can withstand the system's conditions.

- Media characteristics: Consider the abrasiveness, viscosity, and corrosiveness of the media.

- Frequency of operation: For high-frequency operations, valves with enhanced durability may be required.

How to Select the Right Standard Size Knife Gate Valve?

Factors to Consider When Choosing a Valve

Selecting the correct standard size knife gate valve involves more than just matching the pipe size. Key factors to consider include:

- Flow rate: Determine the volume of material that needs to pass through the valve.

- Pressure requirements: Ensure the valve can handle the system's operating pressure without failure.

- Material compatibility: Select a valve material that can withstand the media's chemical composition.

For example, a 6-inch stainless steel knife gate valve might be ideal for a high-corrosion environment, while a 4-inch cast iron valve could suffice for a low-pressure slurry application.

Benefits of Proper Sizing

Choosing the correct size ensures:

- Optimal performance: A properly sized valve minimizes energy loss and maximizes efficiency.

- Reduced maintenance costs: Correct sizing prevents premature wear and tear, reducing downtime and replacement expenses.

- Improved safety: Proper sizing ensures the valve can handle the system's pressure without risk of failure.

Custom vs. Standard Sizes: When to Choose Which

While standard sizes are suitable for most applications, custom sizes may be necessary for specialized systems or unique operating conditions. Custom valves can be designed to accommodate extreme pressures, temperatures, or flow rates, but they often come at a higher cost.

Conclusion

Standard size knife gate valves are essential components in industries that handle thick, abrasive, or corrosive materials. With sizes ranging from 2 inches to 48 inches, these valves provide reliable and efficient flow control for applications such as mining, wastewater treatment, and pulp and paper production. Selecting the appropriate size and material ensures optimal performance, cost-efficiency, and longevity, making knife gate valves a versatile solution for challenging flow conditions.
