The uses of pipe fittings:

Pipe fittings, as an important component of pipeline systems, have a wide range of uses, covering multiple fields such as construction, industry, agriculture, and transportation. Let's take a detailed look at the specific applications of pipe fittings in different fields.

In the field of architecture, pipe fittings are indispensable key components in water supply and drainage systems, heating systems, and gas pipeline systems.

In water supply and drainage systems, various pipe fittings work together to ensure the normal supply of domestic water and the smooth discharge of sewage. For instance, PPR pipe fittings are often used in building water supply pipelines. Their excellent corrosion resistance and hygiene performance can guarantee that the water quality is not contaminated, providing residents with safe and reliable domestic water.

PVC pipe fittings are the preferred choice for building drainage pipelines. Their smooth inner walls, low water flow resistance, and resistance to scaling, along with their good corrosion resistance, can effectively prevent sewage from eroding the pipelines and ensure the unobstructed operation of the drainage system.

Pipe fittings like elbows and tees play a crucial role in laying water supply and drainage pipelines by changing the direction of the pipelines and enabling branches, allowing the pipeline system to be rationally laid out according to the building structure and water usage requirements.

In heating systems, pipe fittings also play a significant role. Steel pipe fittings, with their high strength and good high-temperature resistance, can withstand the transportation of hot water, ensuring that heat is evenly distributed to each room.

Pipe clamps and unions are used to connect pipelines, facilitating the installation and maintenance of heating systems. When it is necessary to inspect or replace pipeline components, they can be easily disassembled and reconnected, greatly improving work efficiency.

For gas pipeline systems, safety is of paramount importance. Stainless steel pipe fittings, with their excellent corrosion resistance and sealing properties, are the ideal choice for gas pipelines. They can effectively prevent gas leakage and ensure the safety of residents' lives and property. During the installation of gas pipelines, the connection quality of pipe fittings directly affects the safety of the system. Therefore, it is necessary to strictly follow relevant standards and regulations for operation to ensure that each connection point is firm and reliable.

The industrial sector

The industrial sector is an important application area for pipe fittings, and different industries have different requirements for the performance and materials of pipe fittings.

In the petrochemical industry, pipe fittings need to withstand harsh conditions such as high temperatures, high pressures, and strong corrosions. For instance, in the crude oil processing of oil refineries, pipelines need to transport high-temperature and high-pressure crude oil and various chemical raw materials. Cast iron pipe fittings and stainless steel pipe fittings, with their high strength and excellent corrosion resistance, can meet these demands and ensure the safe and stable operation of the production process.

In chemical production, the transportation of various corrosive media such as acids, alkalis, and salts is often involved. Corrosion-resistant pipe fittings such as ceramic pipe fittings and plastic pipe fittings are widely used. They can effectively resist the corrosion of media, extend the service life of pipelines, and reduce production costs.

The power industry is also an important application field for pipe fittings. In thermal power plants, steam pipelines need to withstand high-temperature and high-pressure steam. Cast iron pipe fittings and alloy steel pipe fittings can withstand such working conditions, ensuring the efficient transportation of steam and providing stable power support for power generation equipment. In nuclear power plants, the quality and safety requirements for pipe fittings are even higher. Special materials and manufacturing processes need to be adopted to ensure safe operation under extreme conditions and guarantee the stable power generation of nuclear power plants.

The metallurgical industry also relies on the support of pipe fittings. In the steel production process, various high-temperature liquids and gases, such as molten iron, molten steel, and gas, need to be transported. High-temperature and wear-resistant pipe fittings can meet the special needs of the metallurgical industry and ensure the continuity and stability of the production process.

For example, in the blast furnace ironmaking process, hot air pipelines need to transport high-temperature hot air into the blast furnace. Heat-resistant alloy pipe fittings can withstand the erosion of high-temperature hot air and ensure the normal operation of the blast furnace.



In other fields

Apart from the construction and industrial sectors, pipe fittings are also widely used in areas such as agricultural irrigation, shipbuilding, and aerospace. In agricultural irrigation, plastic pipe fittings have become the preferred material for irrigation systems due to their low cost, ease of installation, and corrosion resistance. PVC and PE pipe fittings are widely used in farmland irrigation pipelines, efficiently transporting water resources to the fields and achieving water-saving irrigation, thereby enhancing the utilization efficiency of water resources and promoting the development of agricultural production. For instance, in some large-scale farmland irrigation projects, by laying a PVC pipeline network and using three-way and four-way pipe fittings for branch irrigation, every piece of farmland can receive adequate water, promoting the growth of crops. In the shipbuilding industry, pipe fittings are used in various pipeline systems of ships, such as fuel pipelines, seawater pipelines, and freshwater pipelines. Ships operate in marine environments, and pipe fittings need to have excellent corrosion resistance and seawater erosion resistance to ensure the safe navigation of ships. For example, in the seawater cooling system of ships, using corrosion-resistant copper-nickel alloy pipe fittings can effectively resist seawater corrosion, ensuring the normal operation of the cooling system and preventing equipment failures caused by pipeline corrosion. In the aerospace field, the application of pipe fittings places more emphasis on lightweight and high-strength materials. Aerospace pipe fittings typically use lightweight and high-strength materials such as titanium alloys and aluminum alloys to meet the strict requirements of aircraft for weight and performance. These pipe fittings are used in critical parts of aircraft such as fuel systems, hydraulic systems, and cooling systems, ensuring the safe and reliable operation of aircraft in extreme environments. For instance, in the fuel system of aircraft, using titanium alloy pipe fittings not only reduces the weight of the aircraft and improves fuel efficiency but also ensures the normal transportation of fuel under harsh conditions such as high altitude, low temperature, and high pressure, providing reliable power support for aircraft flight.



How to Choose the Right Pipe Fittings

Faced with a dazzling array of pipe fittings, how to choose the right ones has become a concern for many people. The following are some key points for selecting pipe fittings, hoping to help everyone make the right decision.

The performance requirements for pipe fittings vary greatly depending on the usage environment. In environments that are humid and highly corrosive, such as chemical plants and sewage treatment plants, pipe fittings with strong corrosion resistance should be selected, such as stainless steel pipe fittings, plastic pipe fittings or those that have undergone special anti-corrosion treatment. In high-temperature environments, like those in boiler rooms and thermal power plants, pipe fittings that can withstand high temperatures, such as cast iron pipe fittings and alloy steel pipe fittings, should be chosen. For instance, in buildings near the sea, where the air is humid and contains salt, water supply and drainage pipes should prioritize the use of pipe fittings that are resistant to seawater corrosion to ensure the service life of the pipes.

Clarify pressure requirements: Selecting pipe fittings based on the working pressure of the pipeline system is of vital importance. The pressure resistance capacity of the pipe fittings must exceed the maximum working pressure of the pipeline system to ensure the safe operation of the system. For some high-pressure pipeline systems, such as oil and gas transmission pipelines, pipe fittings with high strength and good pressure resistance performance should be chosen, such as those made of seamless steel pipes; while for some low-pressure pipeline systems, such as household water supply and drainage pipelines, ordinary PPR or PVC pipe fittings can meet the requirements. For instance, in the water supply system of high-rise buildings, due to the relatively high water pressure, pipe fittings with pressure resistance grades that meet the requirements should be selected to prevent pipeline rupture or leakage.

Ensure pipe diameter matching: The pipe diameter of the pipe fittings must match that of the connected pipes to guarantee the tightness of the connection and the normal operation of the pipeline system. When choosing pipe fittings, accurately measure the outer or inner diameter of the pipe and then select the corresponding specifications of pipe fittings. For example, when installing PPR water pipes, select the corresponding PPR pipe fittings based on the nominal outer diameter of the water pipe. A 20mm PPR pipe should be paired with 20mm specifications of elbows, tees, and other pipe fittings.

Pay attention to material properties: Different materials of pipe fittings have different characteristics and should be selected based on actual needs. If good hygiene performance is required, such as for drinking water pipeline systems, stainless steel pipe fittings and PPR pipe fittings can be chosen. If flexibility and sealing performance are emphasized, like in the cooling water pipes of car engines, rubber pipe fittings are a good choice; while for some occasions with high requirements for strength and high-temperature resistance, such as in the aerospace field, pipe fittings made of lightweight and high-strength materials like titanium alloy and aluminum alloy are more suitable.

Pipe fittings, these seemingly insignificant small components, play a crucial role in various fields of our lives. Understanding the classification and uses of pipe fittings not only enables us to better comprehend the piping systems around us in daily life but also helps us make more appropriate choices when undertaking decoration, maintenance, and other tasks. Meanwhile, for those engaged in construction, industry, and related fields, having a thorough grasp of pipe fitting knowledge is of vital importance, as it directly affects the quality, safety, and efficiency of projects.

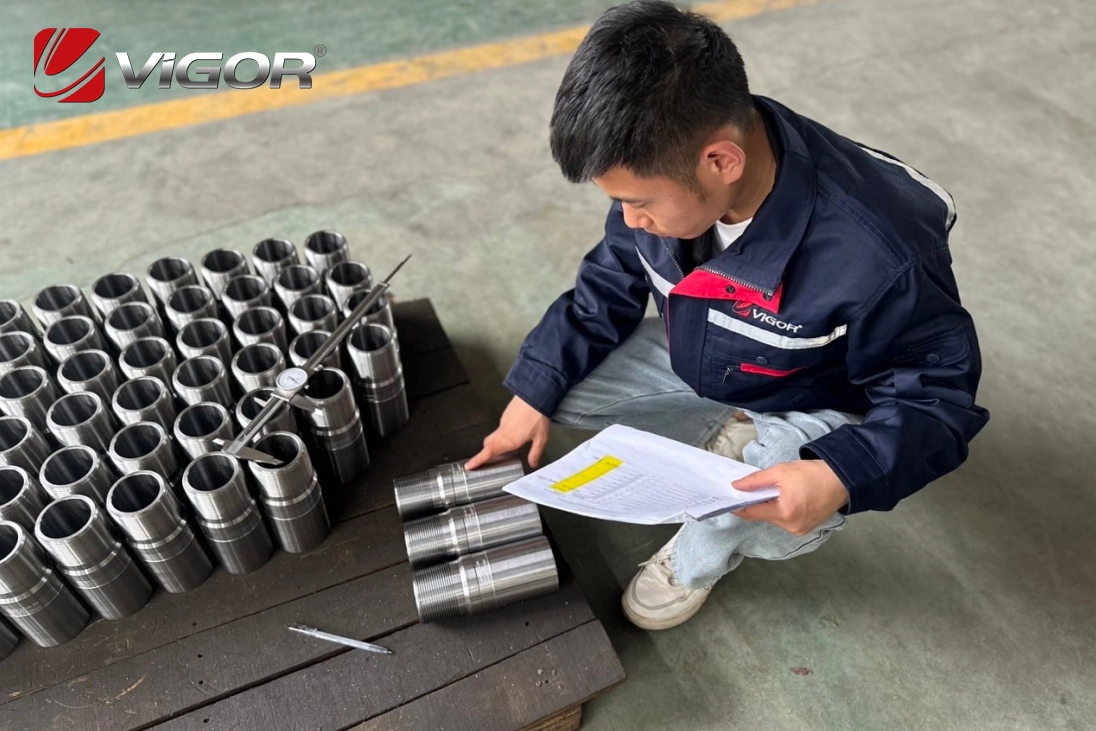

Vigor produces both cast and forged pipe fittings. If you have any question and demand of products development or improve your supply chain, please feel free to contact us at info@castings-forging.com
