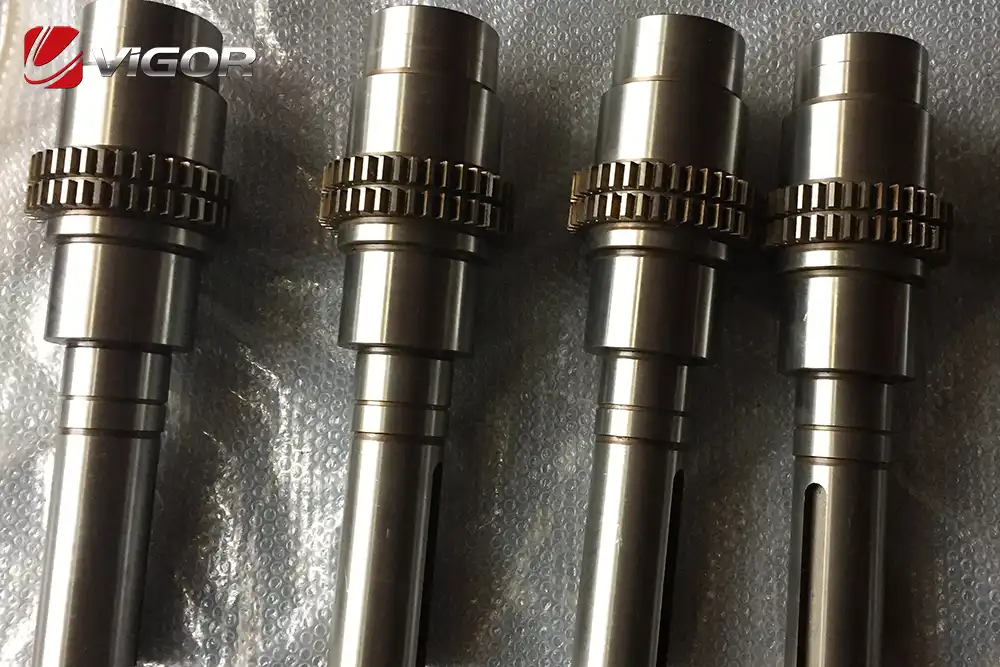

CNC machining significantly enhances the precision of gear shafts by offering unparalleled accuracy, repeatability, and efficiency in the manufacturing process. Gear shafts are critical components in machinery, requiring tight tolerances to ensure optimal performance. CNC machining leverages advanced computer control systems to achieve precise dimensions and surface finishes, reducing defects and meeting even the most stringent requirements. For industries relying on gear shafts, such as automotive, aerospace, and heavy equipment, CNC machining ensures consistent quality, improved durability, and cost-effective production. Let's explore how CNC machining transforms the precision of gear shafts and why it's a game-changer for manufacturers worldwide.

The Role of CNC Machining in Gear Shaft Production

CNC (Computer Numerical Control) machining has revolutionized the production of gear shafts by enabling manufacturers to achieve unparalleled precision and efficiency. Here's how this advanced technology plays a crucial role in gear shaft manufacturing:

Unmatched Precision and Tolerance Control

Precision is paramount in gear shaft production, as even the slightest deviation can lead to poor performance or mechanical failure. CNC machining ensures that each gear shaft is manufactured to exact specifications with tolerances as tight as ±0.001 mm. This is achieved through computer-controlled processes that eliminate human error and provide consistent results.

- Dimensional Accuracy: CNC machines use pre-programmed designs to produce gear shafts that precisely match CAD models, ensuring consistent quality across batches.

- Surface Finish: CNC machining achieves superior surface finishes, reducing friction and wear during gear shaft operation. Smooth surfaces also extend the lifespan of the part.

- Complex Geometries: Gear shafts often feature intricate designs, such as helical teeth or splines. CNC machining excels at handling these complexities with ease.

Enhanced Efficiency Through Automation

CNC machining automates the production process, delivering faster turnaround times without compromising quality. This is particularly advantageous for industries needing large volumes of gear shafts or prototypes for testing purposes.

- Reduced Production Time: CNC machines operate continuously without fatigue, significantly cutting down production cycles.

- Repeatability: Once a program is created, CNC machines can reproduce identical gear shafts with no variation, ensuring consistency across all units.

- Material Optimization: CNC machining minimizes material waste by precisely cutting only what's needed, reducing costs and improving sustainability.

Customization and Adaptability

One of the standout features of CNC machining is its flexibility. Manufacturers can easily adapt the process to produce gear shafts of varying sizes, shapes, and materials to meet specific application requirements.

- Material Versatility: CNC machines can work with a wide range of materials, including stainless steel, titanium, aluminum, and alloys commonly used for gear shafts.

- Quick Design Changes: If a design modification is needed, CNC programs can be updated quickly, eliminating the need for retooling.

- Prototyping Capabilities: CNC machining supports rapid prototyping, allowing manufacturers to test and refine gear shaft designs before full-scale production.

Benefits of CNC Machining for Gear Shaft Performance

Gear shafts are essential components in transmitting torque and rotation within mechanical systems. The quality of a gear shaft directly impacts the performance and reliability of the machinery it supports. CNC machining delivers several key benefits that enhance gear shaft performance:

Improved Durability and Longevity

Gear shafts manufactured using CNC machining exhibit superior durability due to the precise control over material properties and surface finishes.

- Stress Reduction: CNC machining eliminates structural defects, such as microcracks or uneven surfaces, which can weaken the gear shaft over time.

- Hardened Surfaces: CNC processes, such as heat treatment integration, improve the wear resistance of gear shafts, making them suitable for heavy-duty applications.

Reduced Mechanical Noise and Vibration

Precision machining minimizes imperfections that can cause gear shafts to produce noise or vibration during operation.

- Perfect Alignment: CNC-machined gear shafts ensure proper alignment with other components, reducing operational disturbances.

- Balanced Weight Distribution: Accurate machining eliminates imbalances, which can lead to uneven wear and tear.

Compliance with Industry Standards

Industries like automotive, aerospace, and energy have stringent quality standards for gear shafts. CNC machining ensures compliance by meeting even the most demanding specifications.

- ISO Certification: CNC machining processes align with international quality standards, guaranteeing reliable and globally accepted results.

- Traceability: Advanced CNC systems track every step of the manufacturing process, providing full accountability and quality assurance.

CNC Machining Techniques for Gear Shaft Precision

CNC machining encompasses a variety of techniques and tools, each tailored to deliver optimal results for gear shaft production. Below are some of the most commonly used methods:

Turning and Milling

Turning and milling are foundational CNC machining techniques used to shape gear shafts accurately.

- Turning: Ideal for creating cylindrical shapes, turning ensures the gear shaft's outer diameter meets exact specifications.

- Milling: Milling is used to cut splines, keyways, or teeth into the gear shaft, enabling it to perform its intended function.

Grinding for Surface Perfection

Grinding is a finishing process that refines the surface of gear shafts to achieve the desired smoothness and tolerances.

- Cylindrical Grinding: This method achieves high precision for outer diameters and improves surface integrity.

- Centerless Grinding: Perfect for mass production, centerless grinding ensures uniformity across multiple gear shafts.

Heat Treatment and Surface Coating

To enhance the mechanical properties of gear shafts, CNC machining can integrate heat treatment and surface coating processes.

- Hardening: Heat treatment strengthens the gear shaft, making it more resistant to wear and deformation.

- Coating: Surface coatings, such as nitriding or anodizing, provide additional corrosion resistance and durability.

Conclusion

CNC machining has revolutionized gear shaft production by providing unmatched precision, efficiency, and customization capabilities. With its ability to meet tight tolerances, minimize defects, and optimize material usage, CNC machining ensures that gear shafts perform reliably across a wide range of applications. Whether you're in the automotive, aerospace, or energy industry, leveraging CNC machining for gear shafts can significantly enhance the quality and durability of your products.
