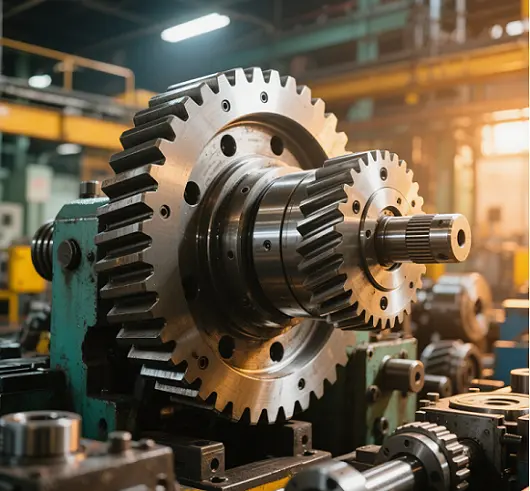

The differences and application environments between spur gears and helical gears are as follows:



I. Differences

1. Nature differences: Helical gear transmission is a commonly used form of mechanical transmission parts. Its gears are made of high-quality high-strength alloy steel, which not only has high durability and transmission efficiency, but also requires consideration of the angle and helical direction of the helical teeth during design and manufacturing to ensure smooth and reliable transmission. Spur gear transmission is a basic form in gear classification. Its tooth surface is parallel to the axis, with a relatively simple structure, lower manufacturing and maintenance costs, and is suitable for applications with lower requirements for transmission accuracy.

2. Meshing performance: During the meshing process of helical gears, the contact line of the tooth surface changes from short to long and then from long to short. This gradual contact method makes the meshing process smoother, significantly reducing shock and noise, and is particularly suitable for high-speed and heavy-load transmission applications, such as high-speed machine tools and automotive gearboxes. In contrast, the meshing process of spur gears is relatively direct, with the contact line length remaining constant, which is prone to generating significant noise and vibration, and is suitable for low-speed and light-load transmission systems.

3. Overlap: The tooth surface of helical gears is inclined, which results in a larger overlap than that of spur gears. This means that at any moment, multiple tooth surfaces are simultaneously engaged, significantly enhancing the gear's load-carrying capacity, extending its service life, and reducing the risk of wear and breakage due to excessive force on a single tooth. Spur gears have a smaller overlap and a relatively lower load-carrying capacity, making them suitable for transmission systems with smaller loads.

4. Structural compactness: The minimum number of teeth for helical gears can be smaller than that of spur gears. Therefore, under the same transmission ratio, helical gear transmission mechanisms can be designed to be more compact, saving space, and are particularly suitable for applications with strict requirements on equipment volume, such as aerospace and precision instruments. Spur gears, due to their simple structure, are suitable for transmission systems with less stringent space requirements.



II. Different Applications

1. Spur gears: Mainly used to reduce speed and increase torque, they are commonly found in various mechanical equipment, such as mixers, washing machines, automobiles, bicycles, mechanical clocks, etc. Spur gears are simple in design, easy to manufacture, low in cost, and high in efficiency, capable of achieving various transmission ratios. They are particularly suitable for low-speed and light-load applications with lower requirements for transmission accuracy. In household appliances and simple machinery, spur gears are widely used due to their economy and reliability.

2. Helical gears: Widely used in applications where heavy loads are transmitted between parallel shafts at very high speeds, such as automotive gearboxes, printing machinery, conveyors, elevators, factory automation equipment, etc. Helical gears have higher load-carrying capacity and contact ratio, are smoother and quieter than spur gears, and have good precision grades. They are suitable for applications with higher requirements for transmission smoothness and noise. In addition, helical gears are widely used in automotive differential systems, effectively distributing the rotational speed of the left and right wheels to improve driving stability; in industrial machinery, such as machine tools, helical gear transmission systems can improve processing accuracy and efficiency; in aircraft engines in the aerospace field, helical gear transmission systems can ensure stable operation at high speeds; in the marine industry, such as propulsion and auxiliary systems, helical gear transmission systems can withstand large torques and high loads, ensuring the reliable operation of ships.



In summary, spur gears and helical gears have significant differences in nature, meshing performance, overlap, structural compactness, and application. The choice of gear type depends on specific transmission requirements and working environments. Spur gears, with their simplicity and economy, are suitable for low-speed and light-load applications, while helical gears, with their high efficiency and stability, play an irreplaceable role in high-speed and heavy-load fields.
